Introduction

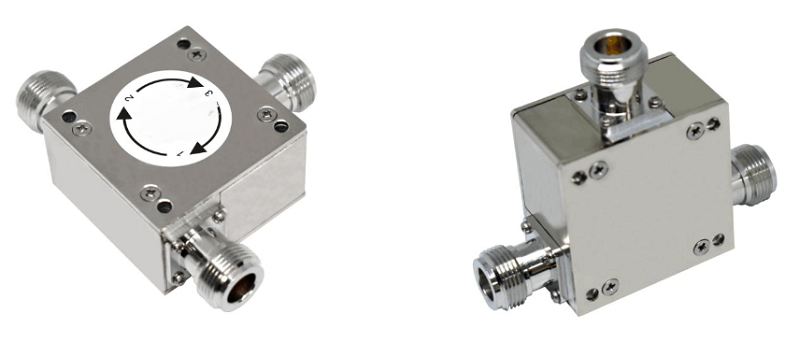

Microwave circulators are fundamental components in modern RF and wireless communication systems, serving as the traffic directors of electromagnetic signals. These non-reciprocal three-port devices ensure unidirectional signal flow, playing critical roles in radar systems, satellite communications, and 5G infrastructure. As global demand for high-frequency connectivity grows, circulators continue to evolve with advanced materials and compact designs to meet next-generation network requirements.
Core Technology and Operation
Circulators operate through ferromagnetic principles, using magnetized materials to force signal directionality:
Port Isolation: Signals entering one port only exit the next designated port
Frequency Range: Available from UHF to millimeter-wave bands (1-100 GHz)
Insertion Loss: Typically 0.5dB or lower in modern designs
Recent breakthroughs in yttrium iron garnet (YIG) materials and LTCC (Low-Temperature Co-fired Ceramic) packaging have enabled:
40% size reduction versus traditional models
Operation up to 150°C for military applications
Broadband performance covering 3.5-6 GHz for 5G
Key Applications Driving Adoption
1. Defense and Aerospace Systems
Radar duplexing in fighter jets (F-35, Eurofighter)
Electronic warfare signal routing
Satellite transponder isolation
2. Telecommunications Infrastructure
5G massive MIMO base station protection
Full-duplex radio implementations
Fiber optic network signal management
3. Quantum Computing
Qubit signal isolation in superconducting circuits
Cryogenic circulators operating at 4K
4. Medical Imaging
MRI machine signal conditioning
Therapeutic radiation guidance systems
Market Trends and Future Outlook
The global circulator market is projected to grow at 6.8% CAGR through 2029, fueled by:
6G development requiring THz-range components
Phased array radar proliferation in automotive and defense
GaN amplifier integration demanding robust isolation
Emerging technologies include:
Non-magnetic optical circulators for photonic ICs
Reconfigurable graphene-based designs
AI-optimized thermal management systems
Selection Criteria for Engineers
When specifying circulators, consider:
Parameter | Standard Range | Premium Performance |
Frequency | 1-18 GHz | 18-110 GHz |
Power Handling | 10-50W | 50-500W |
VSWR | <1.25:1 | <1.15:1 |
Temperature | -20°C to +85°C | -55°C to +150°C |
Conclusion
As wireless systems push performance boundaries, microwave circulators remain indispensable for signal integrity. Ongoing material science innovations promise even smaller, more efficient designs capable of supporting terabit-speed communications and advanced radar architectures.
